ICON 2008-Up Toyota Land Cruiser, 1.5-3.5″ Lift, Stage 1 Suspension System

Description

The 200 Series Toyota Land Cruiser is a luxurious vehicle packed with “all the bells and whistles”, but underneath all of the sophistication it is still a very capable vehicle that sees heavy use both on and off-road worldwide. While the 200 Series has exceptional ride characteristics in stock form, it is clear that the suspension is in need of a serious upgrade if the vehicle is to serve any measurable amount of time in the dirt. ICON Vehicle Dynamics has addressed this need for a comprehensive suspension solution and is proud to re-introduce several suspension systems that drastically increase the overall ability of the 2008-UP Toyota Land Cruiser.

Features & Benefits:

• Bolt-on design means no cutting or welding necessary for install
• Increased wheel travel and ride quality over stock
• Improved vehicle dynamics and decreased body roll
• Height adjustable coilovers provide 1.5-3.5″ of lift height
• ICON engineered dual rate rear coil springs
• Vehicle-specific tuned front and rear shocks provide superior damping and control
• Corrosion resistant CAD plated coilover shock bodies with 7/8″ shafts
• 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• Shocks are fully rebuildable and revalveable

NOTES:

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5.75” Backspace / 25mm Offset
• Recommended Aftermarket Wheels: ICON Alloys – 18×9″ w/ 6.00” Backspace / 25mm Offset
• Recommended Aftermarket Wheels: ICON Alloys – 20×9″ w/ 5.625” Backspace / 16mm Offset
• Recommended Aftermarket Tires: 34″ x 10.50″ (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #24: Factory UCA’s Will Not Align Properly Past 2.5” Of Lift. Above 2.5” Of Lift An Aftermarket UCA Is Recommended.
• APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
• APPLICATION NOTE #111: Bump Stop Spacer Kit Available That Can Be Installed To Increase Threads Showing Beyond Max Recommendation.
• Ships in multiple boxes

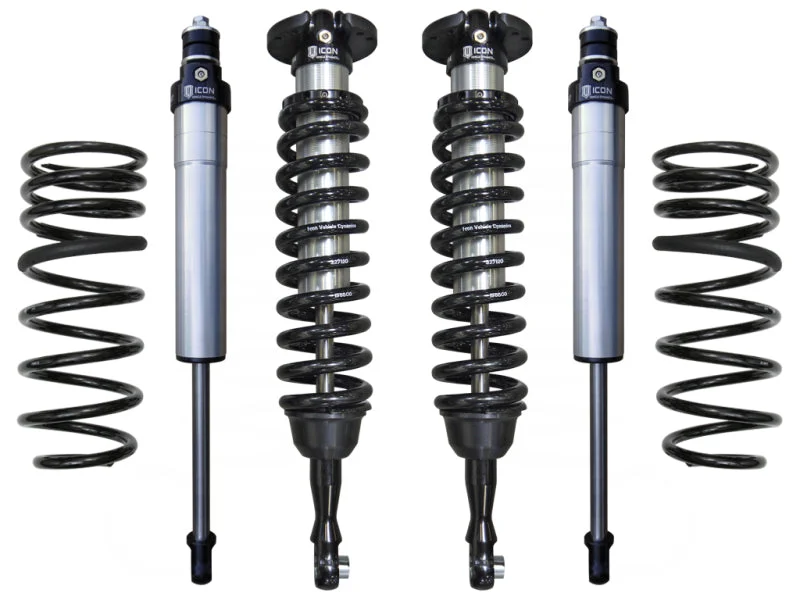

Components:

• 58660 (QTY: 1) | 08-UP LC 200 2.5 VS IR COILOVER KIT
• 52750 (QTY: 1) | 08-UP LC 200 1.75″ DUAL RATE REAR SPRING KIT
• 57625P (QTY: 1) | 08-UP LC 200 0-2″ REAR 2.5 VS NR PAIR

ICON 2008-Up Toyota Land Cruiser, 1.5-3.5″ Lift, Stage 1 Suspension System | SKU: K53071
